8th gen turn signal/dimmer switch replacement

Common issue I have found with our 8th gen vehicles, after awhile the turn signal switch wears, and you find the highbeams coming on randomly when you use the signal. The fix is replacement, AC delco part is fairly cheap through rockauto, unlike it's 7th gen counterpart.

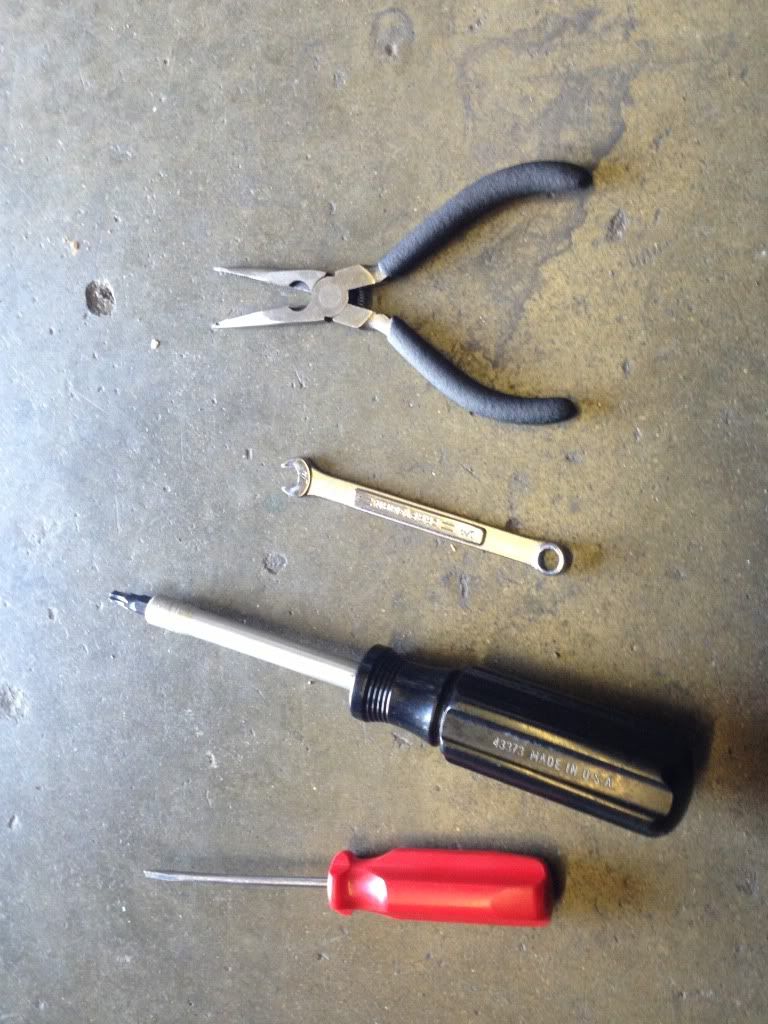

Lets get started. First tools, what I used: 1/4 driver, T25 torx bit, 1/4 end wrench, needlenose pliers (optional), and a small flatblade screwdriver.

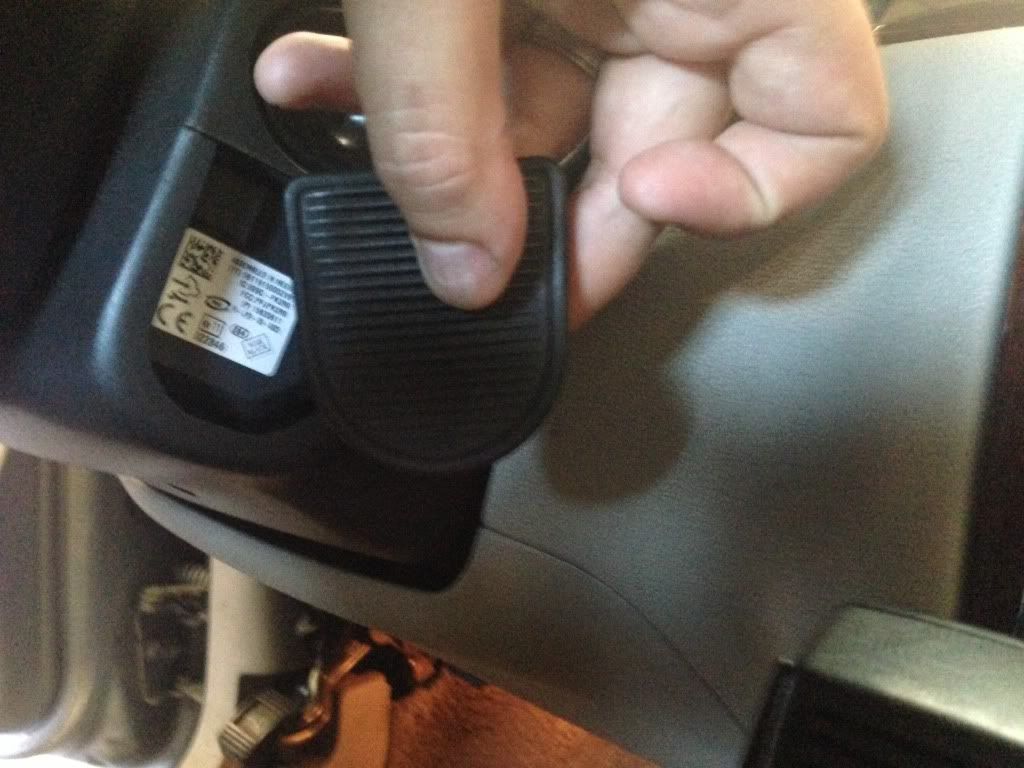

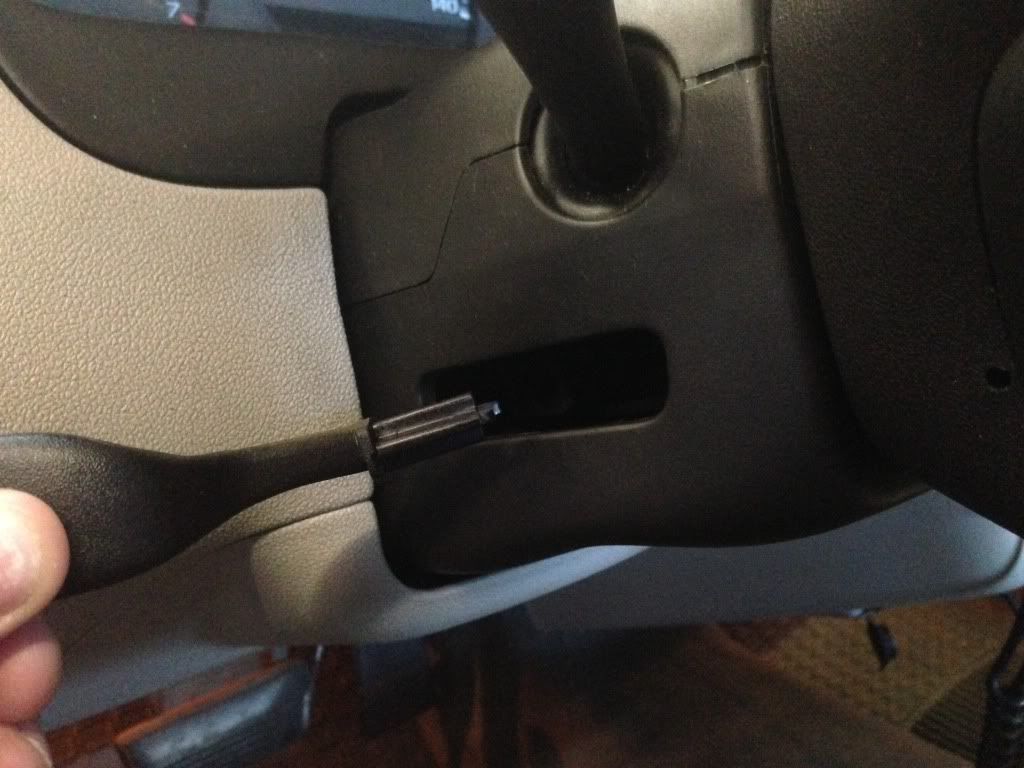

First pull the tilt adjuster off, nothing holding it, just pull outward.
Remove the plug piece by the ignition switch

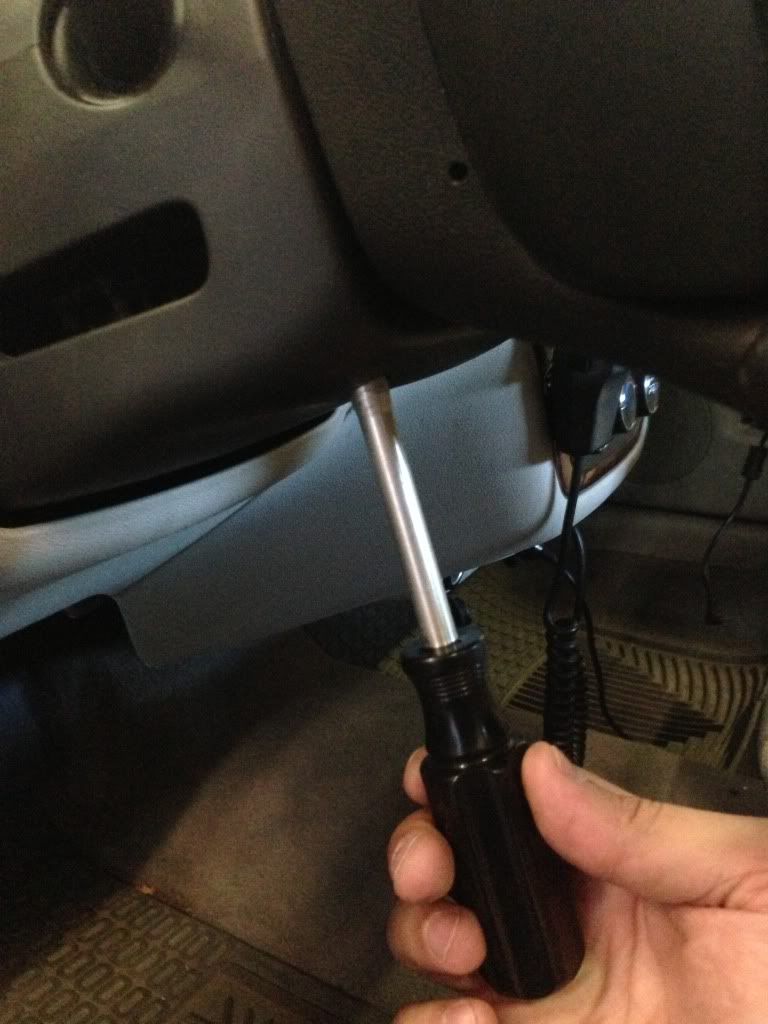

Remove the torx screw in the bottom of the column, front most hole. No idea what the others are for

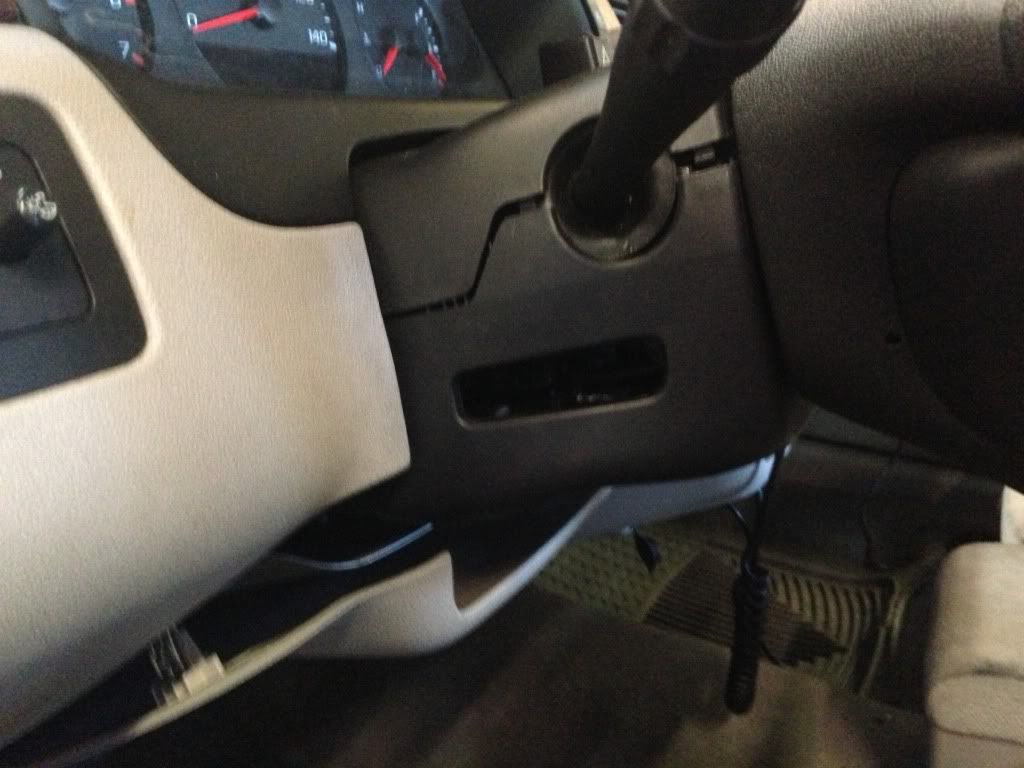

Pull down the panel under the column, just a little, there are screws holding it at the bottom, but you just need a little room.
Remove the bottom column trim, just pop the clips apart at the front, then push back and wiggle, as shown it is held with hooks in the rear.
Remove the top trim, you have to finagle it around the ignition switch a little.

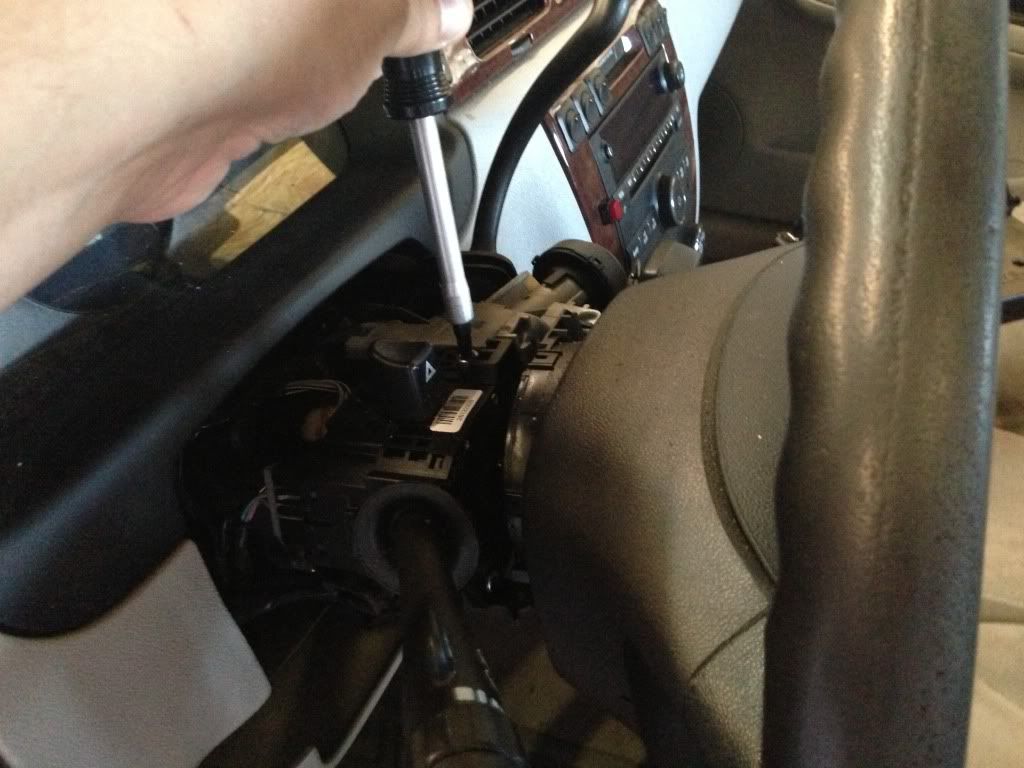

Remove the top torx screw holding the switch.

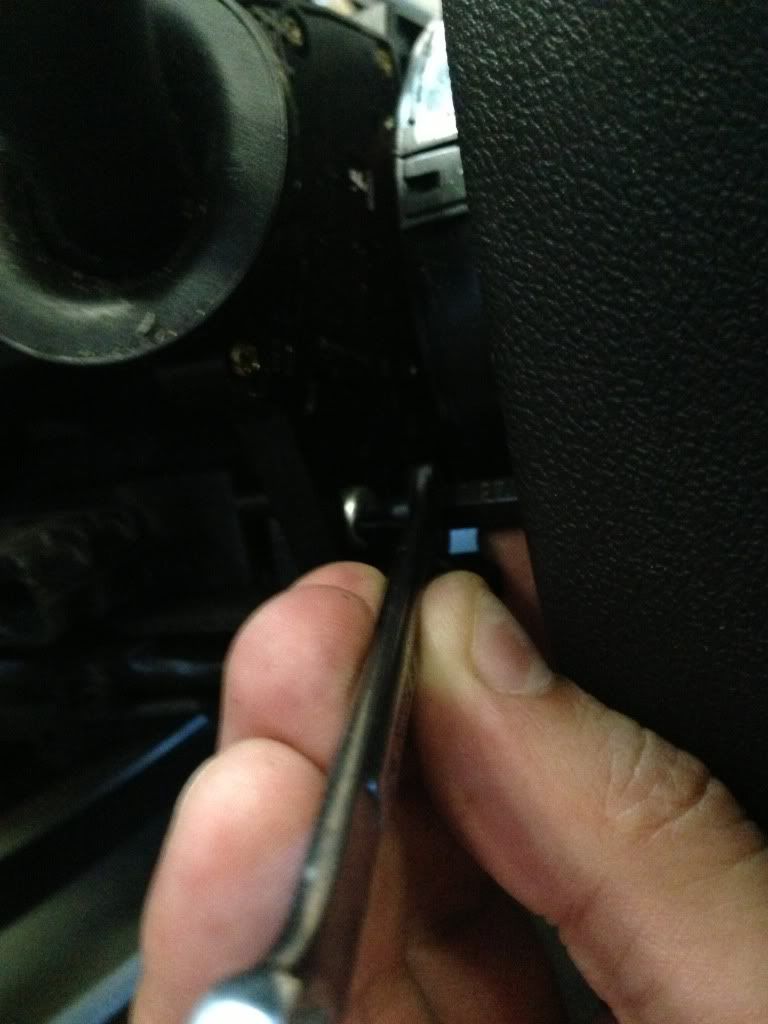

Now the lower screw, this is where the wrench comes in. There is no clearance without removing the wheel, I find this may be a serious pain, but easier than removing the wheel. The pliers come in here as well, once the screw is loosened you can turn it easier with them.

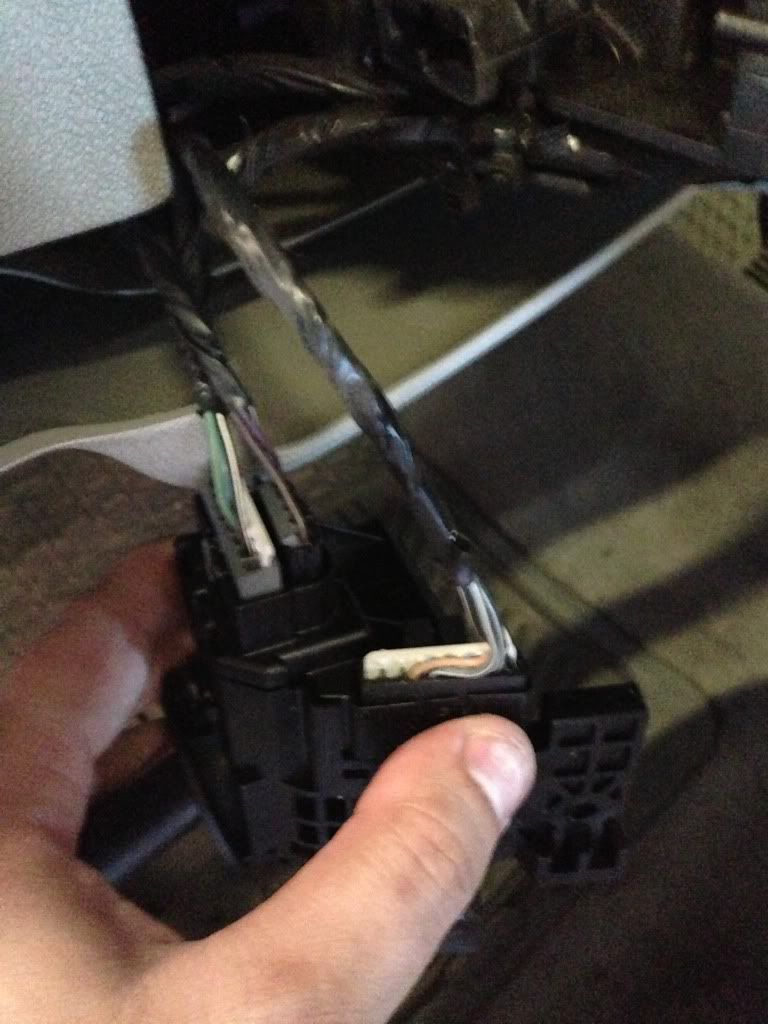

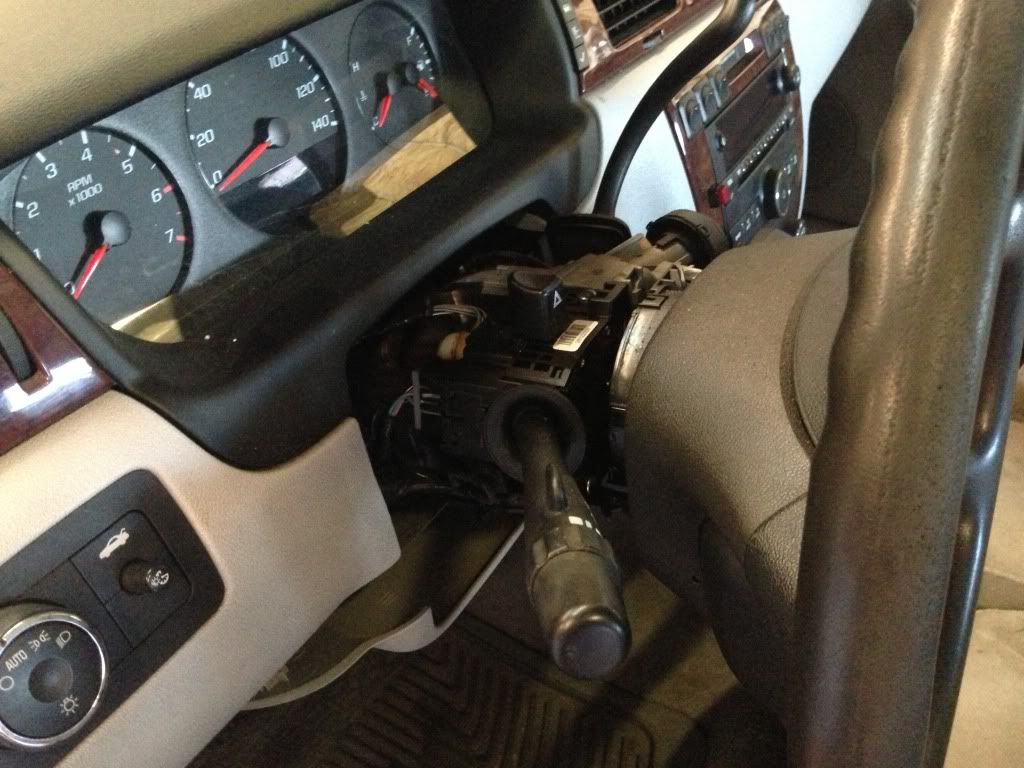

Pull the switch off the column.

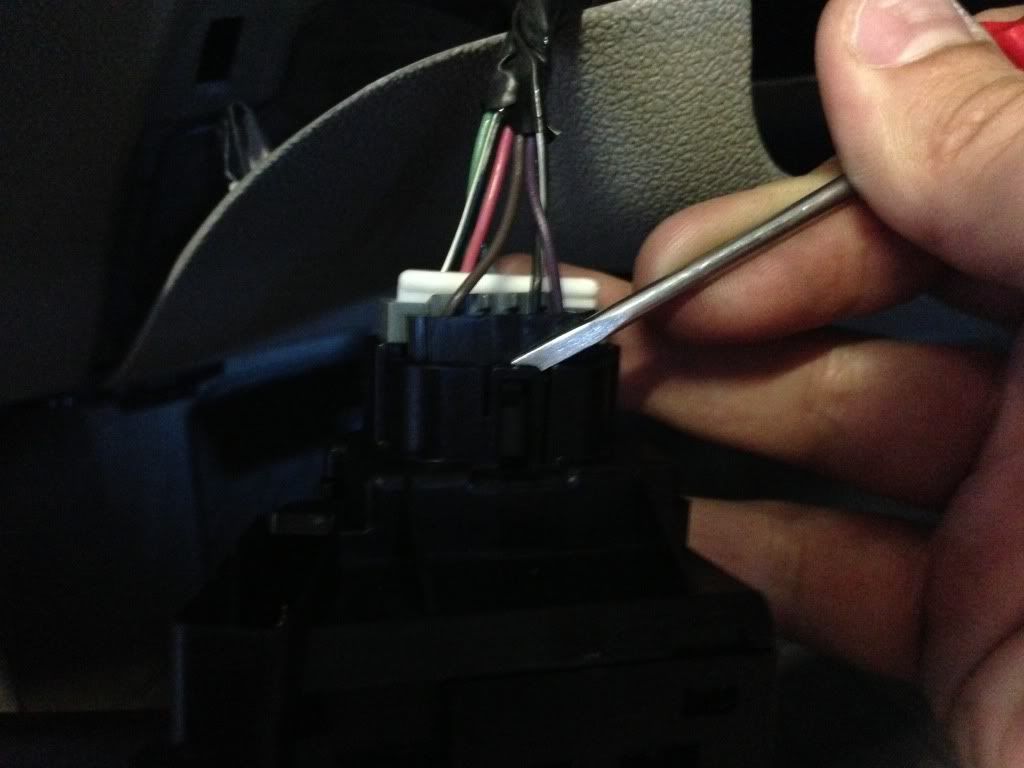

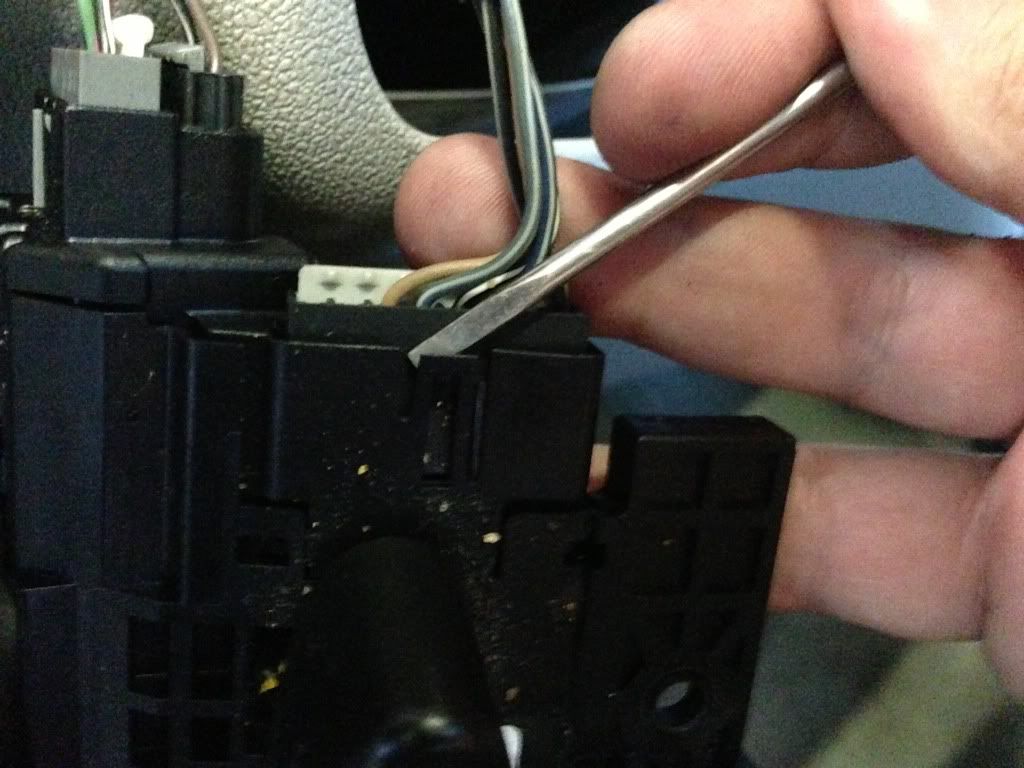

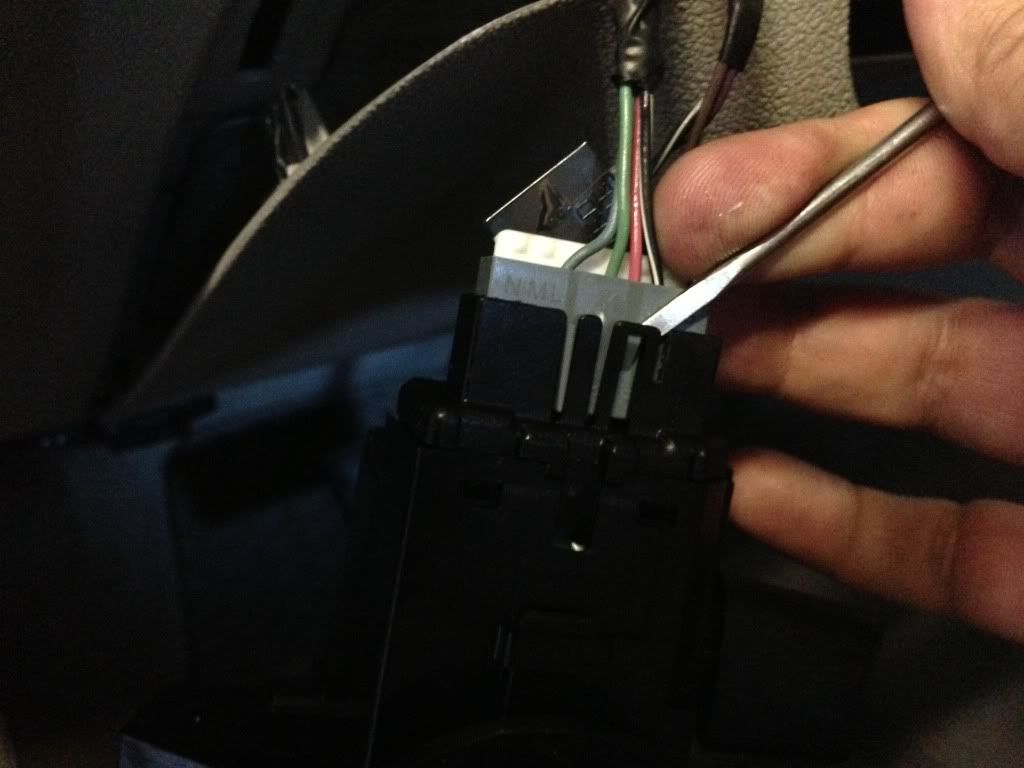

Remove each of the 3 plugs using the screwdriver on the tabs.
And that's it! Put everything back together in reverse order. The column trim is a serious pain to get back in place, but be patient and look closely, and you'll get it.
